Location: Portland Oregon | ok......so is anyone familiar with the bridge mechanics of this guitar??........i don't understand what the little scew in the back of the body is for...........when i got the guitar, the screw was never attached to anything........and i don't understand how it would adjust the bridge, even with the missing part.......
well, thanks for all your help.......have a goo weekend..... |
|
| |
|
Joined:
June 2007
Posts: 16
Location: Portland Oregon | haha.......goo....... |
|
| |
|
Joined:
June 2007
Posts: 16
Location: Portland Oregon | haha.......goo....... |
|
| |
|
Joined:
November 2004
Posts: 1374
| if it has the old style brass and plastic bridge it mounts and adjusts at 3 points hence the screw in the back,
if it has the newer chrome or gold schaller bridge it only mounts at 2 points and the screw is unnecessary... just filling a hole.
Glenn |
|
| |
|
Joined:
January 2002
Posts: 14127
Location: 6 String Ranch | That's right. The later ones had that hole filled so you have a "transition" model. |
|
| |
|
Joined:
June 2007
Posts: 16
Location: Portland Oregon | so why is the bridge at that weird angle??........is the bridge worn??......or those 2 posts that hold the bridge in place, are they worn??.........or is that how they made it??........
sorry......i get alittle excited......hahaha..... |
|
| |
|
Joined:
January 2003
Posts: 1498
Location: San Bernardino, California | Which type of bridge do you have?
Type 1 or 2?
 |
|
| |
|
Joined:
January 2003
Posts: 1498
Location: San Bernardino, California | If type 2: it sounds like you are missing the rear nut.

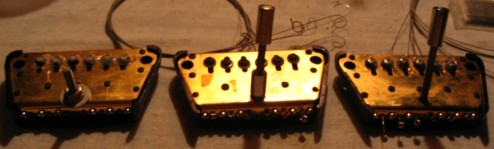

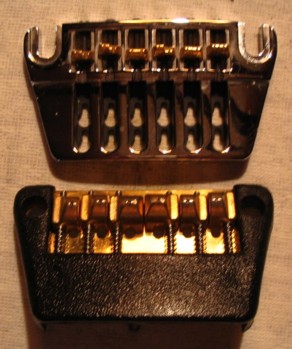

1)Breadwinner/Deacon/Deacon 12
2)UK II with spacer
3)UK II without spacer
 |
|
| |
|
Joined:
August 2007
Posts: 14
Location: Hannover |
from http://www.ovationtribute.com
helped me a lot understanding the construction.
@BruDev
at the 1) I see a detail I miss on my Breadwinner (or maybe I misunderstand what I see on your pic):
are the 6 saddles screwed from under the bridge plate there? |
|
| |
|
Joined:
January 2003
Posts: 1498
Location: San Bernardino, California | The early ones didn't have the hold-down screws.
I've seen seven different types of bridges for the solid body Ovations. |
|
| |
sorry, i got more questions about my UKII......
