Location: Illinois | Some months back I gutted my "O".. okay, it's an "A". In preparation of bridge work. And umm... I lost the paper diagram I made which told me which pot was the volume and which was tone. And .... umm... which went in which hole.
HELP! Can anybody help me ID the Pots and proper location?
FWIW She's Otilda, an AE33

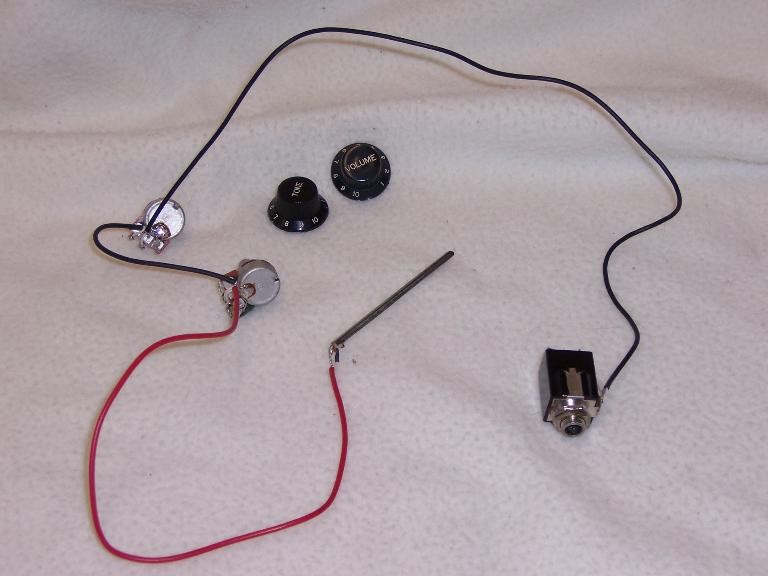

For reference sake, let's call them, in order:
Jack
Pot1
Pot2
pick-up |
|
| |
|
Joined:
December 2003
Posts: 13997
Location: Upper Left USA | The Volume pot is first in line from the piezo and is placed closest to the neck.
Unless of course I'm wrong... |
|
| |
|
Joined:
February 2005
Posts: 11840
Location: closely held secret | ...but you're probably not.
You could just put the pickup in, plug it in and strum the guitar. Try the pots to see which one is the volume, and mark it. Put them wherever makes you happy. |
|
| |
|
Joined:
March 2002
Posts: 14842
Location: NJ | Just plug it in & tap on the pick up . . . |
|
| |
|
Joined:
November 2003
Posts: 11039
Location: Earth·SolarSystem·LocalInterstellarCloud·Local Bub | There's a RedNeck joke in there somewhere... |
|
| |
|
Joined:
December 2006
Posts: 6268
Location: Florida Central Gulf Coast | ...or a country song...
Jack
bridge work
pickup
pot |
|
| |
|
Joined:
February 2002
Posts: 5750
Location: Scotland | You should be able to idenify the tone pot by the fact that it will (or should) have a capacitor soldered to it. |
|
| |
|
Joined:
November 2003
Posts: 11039
Location: Earth·SolarSystem·LocalInterstellarCloud·Local Bub | well, there went the red neck joke... |
|
| |
|
Joined:
March 2002
Posts: 14842
Location: NJ | I dunno . . .wouldn't a truck-driver be considered a . . capped, ass-sitter?? |
|
| |
|
Joined:
November 2003
Posts: 11039
Location: Earth·SolarSystem·LocalInterstellarCloud·Local Bub | 10 points extra credit... |
|
| |
|
Joined:
March 2005
Posts: 5567
Location: Blue Ridge Mountains | and...your choice of anything on the top shelf!
:eek: |
|
| |
|
Joined:
December 2004
Posts: 4394
Location: East Tennessee | I thought this thread was about someone buying a T****r. :D |
|
| |
|
Joined:
October 2002
Posts: 153
Location: Huntington Beach, CA | Not sure putting them "wherever makes you happy" is a good thing. You're knee deep in a project and now you have to go to the Bahamas? |
|
| |
|
Joined:
November 2002
Posts: 3666
Location: Pacific Northwest Inland Empire | I vote with Woody. I have always been a devotee of Occam- the simpler, the better.
As an interesting aside, I have an old AE-38, 2-knobber, whose electrical guts are linked into an elongated case, but have the same spacing! |
|
| |
|
Joined:
January 2006
Posts: 208
Location: Illinois | Thanks. I'll look for the cap.
And.. Easy on the Country and Red-neck jokes. I resemble that remark... me and Glenn Campbell, who also had a fettish for Ovation lute-tars. |
|
| |
