Joined:
May 2008
Posts: 8
Location: West Lafayette, Ind. | Over the weekend I bought my first Ovation electric - an "E" serial number Deacon. It's in good used condition.
The entire electronics package is long gone and has been replaced with no-name parts. I am in need of pickups, FET pre-amp, POTS and knobs.
I would like this guitar to be father-and-son restoration project with the goal of building a nice "player" guitar. I don't intend to worry about the few bumps on the body.
Is there a NOS dealer out there or a company making authentic looking and performing pick-ups?
Any advice and assistance one could provide would be greatly appreciated.
joelrasmus@hotmail.com |
|
| |
|
Joined:
December 2006
Posts: 6268
Location: Florida Central Gulf Coast | Hang on, for there will be some great info heading your way. The folk here will do their best to get you on the right 'road'. And we especially love the dad/offspring projects!
 to the OFC... |
|
| |
|
Joined:
December 2001
Posts: 7247
Location: The Great Pacific Northwest | Send me an eMail mileskb @ aol.com and I'll see what we can do to get you going.
Also, are you SURE it is a Deacon or Breadwinner? The difference is that the Deacon is "stained" and the Breadwinner "painted" with a textured paint usually (white, black, blue, tan). Also the Breadwinner used large single coil pickups, where are the Deacon's used mini Humbuckers.
I don't have any of the smaller humbuckers, but I probably have everything else. |
|
| |
|
Joined:
May 2008
Posts: 8
Location: West Lafayette, Ind. | Thanks, guys.
Miles -- you've got mail.
Here's a better description -- The stain (not painted) finish is similar to a dark tobacco sunburst (?) and the neck is fully bound. It also has the "scallop" at the bottom of the neck. The jack is located in the pick guard.
It currently has a couple of full size, uncovered, white bobbin humbuckers in it. I can see some of the original (?) pickup mounting screw holes. The current neck pickup surround extends beyond the 2-ply (black w/ white edge) pickguard.
Joel |
|
| |
|
Joined:
January 2006
Posts: 1132
Location: NW Washington State | I have two of the small humbuckers, but both of them are spaced for the bridge position. When one is used at the neck, the pole pieces don't quite line up. Maybe someone here has a neck pickup.
I had both pickups in my Viper. I always thought that the misalignment at the neck was because the Viper string spacing was different than the Deacon's. It only took me about 15 years to figure out that that I had gotten two bridge pickups from the factory.
If you want to start with something inexpensive, I have a set of generic chrome mini-humbuckers I don't need.
-Steve W. |
|
| |
|
Joined:
August 2006
Posts: 3145
Location: Marlton, NJ | If the spacing is the only difference, is it that big a deal? They both use the same wire guage and the same number of turns. The difference in the spacing between the two is not that significant. |
|
| |
|
Joined:
January 2006
Posts: 1132
Location: NW Washington State | It seemed to me that the output fell of a bit on the strings that weren't exactly lined up with the pole pieces. Can't quite remember it now- maybe I just convinced myself it was a problem. They do work OK and look like they should.
-Steve W. |
|
| |
|
Joined:
May 2008
Posts: 8

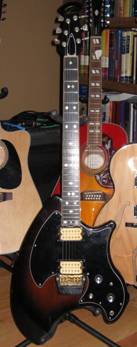

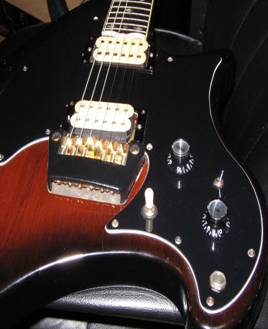

Location: West Lafayette, Ind. | Okay, Here are photos. Any (additional) information and advice is greatly appreciated.
Do the tone and volume knobs look correct? I purchased them from a local guitar store because I thought they looked the the originals I saw in photos. Can anyone tell me if there was anything specific about Ovation knobs?
The FET is missing so the toggle switch does nothing.
The p/u toggle is a 3-position switch...but I don't believe it is original based on the white switch knob.
Upon close inspection you can see that there are exposed p/u mounting holes that are partially covered by the non-stock p/u rings/surrounds.
thanks (again) )to everyone for their help!
MM |
|
| |
|
Joined:
December 2003
Posts: 13997
Location: Upper Left USA | Welcome to the club!
One of the best ways to obtain the electronics for a Deacon or Breadwinner is to pick up a Preacher Deluxe and exchange the parts.
Mile's is good for the stock pickguards and such but the pickups are getting more difficult to locate.
There are a lot of non-stock options out there with the "mini" sized pickups:
Seymour Duncan
TV Jones
Artec
Bill Lawrence
To name a few. There are more compact solid state options for active preamps and mid boosts as well.
Stock gives you a good project to shoot for though.
Enjoy! |
|
| |
|
Joined:
December 2003
Posts: 13997
Location: Upper Left USA | Oh,
For knobs and toggles take a look at the websites in my signature: |
|
| |
|
Joined:
December 2001
Posts: 7247
Location: The Great Pacific Northwest | They can contact me for pickups, knobs, switches, pre-amps, tuners, necks, bridges... I'm running low on bodies tho... :(
-mkb |
|
| |
|
Joined:
May 2008
Posts: 8
Location: West Lafayette, Ind. | MWood,
thanks for the advice on the Preacher Deluxe.
Can anyone tell me if any of the Ovation electrics from the early- to mid-70s would have the right pickups for my Deacon (i.e. viper or preacher)?
I know that these guitars do not have the preamp. |
|
| |
|
Joined:
December 2001
Posts: 7247
Location: The Great Pacific Northwest | "Can anyone tell me if any of the Ovation electrics from the early- to mid-70s would have the right pickups for my Deacon (i.e. viper or preacher)?"
Not sure what you are asking.
All of the pre-amps were "essentially" the same with some minor revisions. The Early Breadwinners and Deacons had Single Coil pickups, and later the Deacons went to humbuckers. Those humbuckers are the same used in the Preacher, Preacher Deluxe.
The Viper had single coil pickups, same size as the humbuckers, and it would be interesting to try them with the pre-amp. I guess they would work, just haven't tried it.
The UK-II pickups are humbuckers, and again the same size as the Viper, Preacher and Deacon humbuckers.
Clear as mud huh ? |
|
| |
|
Joined:
May 2008
Posts: 8
Location: West Lafayette, Ind. | Thanks, Miles. My questions was a bit "muddy" buy your answer was spot on. [also, you've got mail]
Okay...my Deacon's serial number is E 52XX which, per Ovation's web site, means it was built between Jan '73 and Feb '75. Which could make it an "early" Deacon (I think)
However; it DOES have the toggle switch for the preamp as well as the sponge padding in the back cavity for the 9v battery(s). SO, this indicates that it was a guitar outfitted with the mini-humbuckers from the factory (assuming preamps were not used on single coil outfitted guitars). Again; am I correct in my assumptions?
So, I could get humbuckers off another Deacon (except early, single-coil, versions), Preacher or Preacher Deluxe. But NOT off of a Breadwinner or Viper (which were single-coil only equipped). |
|
| |
|
Joined:
June 2007
Posts: 3084
Location: Brisbane Australia | Preamps were used on all Deacons and Breadwinners (Single coil or Humbucker) other than the few Breadwinners that were specifically made for the Partridge Family with passive electronics (about 10 according to Beal).

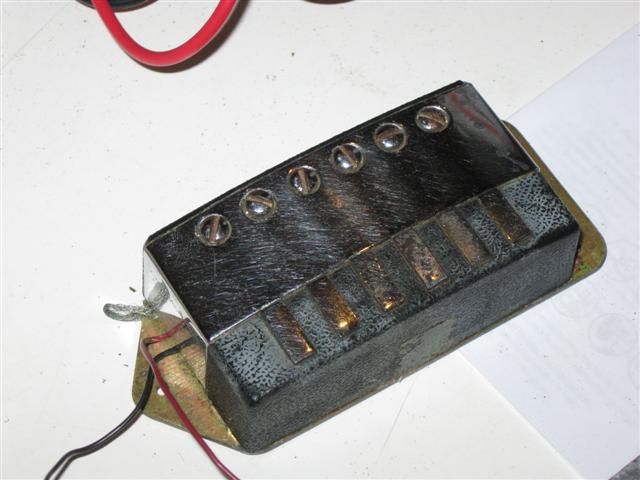

Single coil

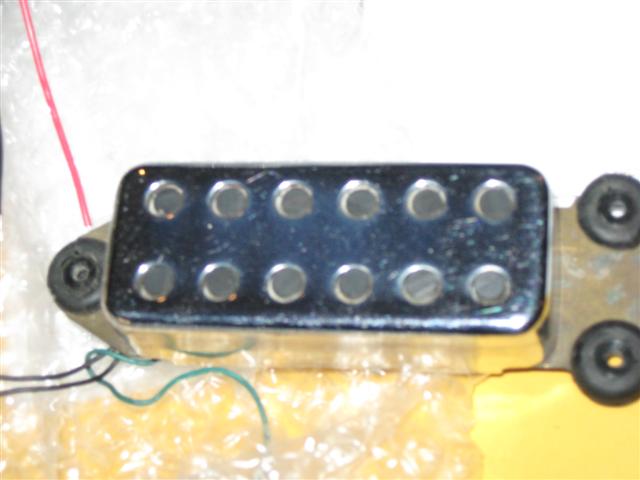

Humbucker
Miles, correct me if I am wrong
AJ |
|
| |
|
Joined:
December 2003
Posts: 13997

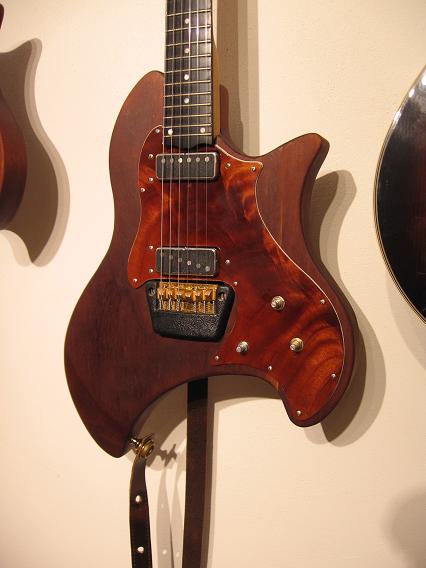

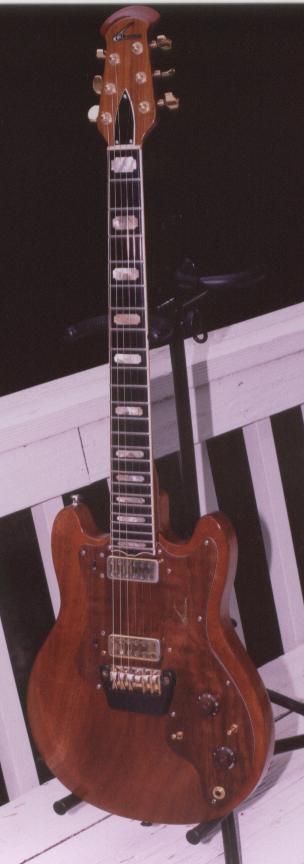

Location: Upper Left USA | Returning to stock is a good thing, but if you ever decide to take a walk on the Custom side...
 |
|
| |
|
Joined:
December 2006
Posts: 6268
Location: Florida Central Gulf Coast | Woody,
Those are beauts! You do some awesome work.
BTW, your feline could be my Slush's twin. Slush went to Rainbow Bridge early last year after thirteen years and eight lives. |
|
| |
|
Joined:
December 2001
Posts: 7247
Location: The Great Pacific Northwest | "However; it DOES have the toggle switch for the preamp as well as the sponge padding in the back cavity for the 9v battery(s). SO, this indicates that it was a guitar outfitted with the mini-humbuckers from the factory (assuming preamps were not used on single coil outfitted guitars). Again; am I correct in my assumptions?"
The Breadwinners and Deacons all had pre-amps, cept the ones that someone took them out, and possibly a couple near the end. The originals, with the single coils, came out with a pre-amp. That was kindof their thing. They also originally had nylon saddles on the bridge. |
|
| |
|
Joined:
May 2008
Posts: 8
Location: West Lafayette, Ind. | THANKS to everyone for the education (and for the patients with me)!
Okay...so how do I tell whether my Deacon originally had single coils or mini humbuckers?
I have brass (?) saddles on the bridge. |
|
| |
|
Joined:
January 2006
Posts: 1132
Location: NW Washington State | Originally posted by McKinley Morganfield:
THANKS to everyone for the education (and for the patients with me)! Only a few days here, and he's already in the insane asylum with the other patients.
Nylon saddles and large single coils came first. I don't know if there were any with brass saddles and large single coils. Maybe you can date yours by the serial number and make a better guess.
I've had my Deacon for 30+ years but haven't been all that impressed with the sound of the stock mini humbuckers and preamp. You might love them- it's all subjective. I haven't heard the large single coils for years, but if Miles has a set, they might be a good choice.
-Steve W. |
|
| |
|
Joined:
May 2008
Posts: 8
Location: West Lafayette, Ind. | Opps...I guess I should proof before I post. Yes, on some days I feel like an asylum "patient." But today I thank you all for you "patience." [thanks Steve)
--
So right now there's an Ovation Preacher on ebay that has the original mini humbuckers replaced with white bobbin demarzio pickups. The dimarzios in the photo look exactly like those in my Deacon (although I haven't pulled them to see if a manufacture is listed.
So, was/is there a general consensus that the mini-humbukers weren't that great? |
|
| |
|
Joined:
January 2006
Posts: 1132
Location: NW Washington State | Just wait a while, someone will post that I'm a heretic and the original setup is perfect. I like a bit more treble and a dip in the midrange (but the notch filter is too much). I'm just a living room noodler, so take my opinion with a grain of salt. My Deacon is back to original for now.
If you have "vintage" Dimarzios, they should be worth something to the right buyer.
If you buy any set of Ovation pickups, they should retain their value so you can resell them if you don't like them.
-Steve W. |
|
| |
|
Joined:
December 2003
Posts: 13997
Location: Upper Left USA | Uncle Woody's Frugal Luthier Tip #19:
Place a capo on the 9th fret of you Ovation solid body and loosen the stings. Then pull the slack up toward the bridge and loosen the strings again, repeat the tug.
Now you have not removed the set of strings but you can remove the bridge from the body, allowing you to remove the pickgaurd and pick ups for cleaning, repair, photo op or whatever.
Replacement is easy and allows for use of the same set of strings following the examination.
The "Preamp" is on a circuit board. |
|
| |
|
Joined:
December 2003
Posts: 13997
Location: Upper Left USA | Also to note:
My preference for pups is the Viper ones. I put a set into a Mahogany Deacon and is was luscious. I am not fascinated by the active electronics, as historical as they are, but there are so many things you can do outside of the guitar that it seems better to just simplify. |
|
| |
|
Joined:
December 2001
Posts: 7247
Location: The Great Pacific Northwest | numbfingers - There's actually an adjustment for the notch filter I believe on those pre-amps. There are two thumb-wheel pots on the board, but I forget which does what at the moment.
Mwoody - I agree on the Viper pickups. They are in a category like P-90 pickups. Not comparing them, just that they are a pickup unto themselves in sound and dynamics. The UKII's fall into this category also, but I still prefer the Viper pickups overall for range of dynamics and tone. |
|
| |
