A lot has been written about the revolutionary design of the Ovation guitar. But surprisingly little information is available about the Ovation guitar's most prominent feature --the bowl.

I'm starting this thread because I am facinated with the design and fabrication of molded fiberglass parts and would like to discuss/document the Ovation bowls. I'd also like to talk about the different stages of bowls and possibly obtain photos of these, especially the earliest bowls made before 1968.

I've gleaned some information from the book, 'The History of the Ovation Guitar'. ('the book') It has some detail about the manufacture of the bowls from 1974 onward. But, information about the bowls made before 1974 is a little sketchy. For example, the first bowls were hand-laid over male molds using clear plastic sheet and vacuum to produce very high-quality parts. But, after a couple of years, ways to reduce the amount of time and effort to produce these parts were sought. So, the molding process was changed to hand-laid inside a female mold.

I had thought that vacuum was applied to the inside of the female molds. But, an early Balladeer project guitar that was missing the entire top came up for sale on eBay recently. The missing top wood allowed an unfettered view of the inside of the bowl. From pics of this guitar I can see that the bowls molded in the female molds were pretty crude-looking affairs, much like any hand-laid parts. The serial number on this particular example (G 552) dates it to being manufactured between 1968 and 1970. This date range is about the same time-frame that is mentioned on page 26 of 'the book'.

Of particular interest in the pics is the extra layers of fiberglass reinforcement applied to the 'tailstock' area. I'm not sure if this was done at the factory or if this was a repair done by a luthier. I would appreciate it if anyone can take a look at this area in their early Ovation to see if theirs has these extra layers of cloth.

History of the Ovation Guitar - PP. 26
1965
2-ply cloth bowl hand-laid over male mold. Covered with clear plastic, apply vacuum and scrape excess resin.
High-quality, but time-consuming to produce, thus very high cost.

1968-1970
2-ply cloth bowl hand-laid in a female mold. (See: G 552 pics)

History of the Ovation Guitar - PP. 73
Until 1977 hand-laid bowls (polyester resin and woven fiberglass cloth) made in New Hartford, CT.
Applause guitars used sheet molding compound (SMC) manufactured by Zehrco in OH until 1981-82.
Due to strike threat at Zehrco, all bowl production (cloth & SMC) were brought to Moosup, CT facility.
Cloth bowls phased out in 1981 and all guitars were fitted with SMC bowls.
In eight years of production over 100,000 guitars were produced at Moosup facility. (1974 - 1982)

History of the Ovation Guitar - PP. 88
Moosup facility opened in 1974.
Both the low-end Applause, high-end Adamas and some of the solid-body Ovation guitars were developed at Moosup.

History of the Ovation Guitar - PP. 92
Moosup was closed in 1982-83.
Marion, NC facility opened in 1982-83.
Bowls (SMC) were made in Marion and sent to New Hartford, CT for Ovation/Adamas and to Korea for Applause guitars.
Standard Balladeer (SSB, CA & deep bowls) were the only model produced in significant numbers at Marion.
Marion facility closed in 1985.

History of the Ovation Guitar - PP. 94
Zehrco started molding Applause bowls (SMC) in 1974.
SMC bowl presses were moved to Marion in 1982.
In 1984 bowl production was moved back to Zehrco in OH.

2005 Factory Tour with Rick Hall
SMC is random glass fibers in a resin matrix.
SMC bowls are pressed into shape in heated compression molds.
Around 2001, Zehrco approached Ovation with idea of using lighter SMC.
Lighter SMC contains ~35-percent microscopic glass spheres, i.e.: microballoons. (Lyrachord GS)
GS in Lyrachord GS name stands for glass spheres.
Lyrachord GS bowls are ~35-percent lighter than standard SMC bowls.

Timeline
1966 - 1968
Hand-laid bowls over male molds.

1968 - 1970
Hand-laid bowls inside female molds.

1974
Applause SMC bowls molded by Zehrco in OH begins.

1970 - 1977
Ovation hand-laid bowls made in New Hartford, CT.

1981
Hand-laid bowls phased out.

1982
All guitars begin using SMC bowls molded in Moosup.

1977 - 1984
SMC bowl production moved to Marion, NC.

1984
All SMC bowl production moved back to Zehrco in OH.

2001
Lyrachord GS bowl developed.

Photos:

1111 G 552 #1
1111 G 552 #2
1111 G 552 #3
1111 G 552 #4

1984 Factory Tour - SMC bowl molding

Hey Dan

Here are some pics from 485 and 1911

I could not tell any difference in the composition or cosmetic makeup of either guitar.

When I pulled out my point and shoot and looked at the pictures, I thought there were prehistoric drawings on my bowl, but alas, it appears to be possibly a .20 milkshake spill from 67

Pic1  Pic2  Pic3  Pic4 Pic5

Hi Jay!

Thanks for the pics. These are exactly the type of pics I was hoping to get.

Your serial numbers tell me that both bowls were hand-laid, vacuum-bagged over the male molds. Are you able to feel any texture of the fiberglass cloth weave with your fingers on the inside of the bowls?

Interestingly, in Pic #1, the bowl almost looks like there's some print-through of the fabric weave showing in the reflection of the neck. Is this just a weird reflection or can you see the weave of the fabric?

Pic #5 is also very interesting to me. I see several things.

1) It looks like the epoxy glue holding the wood block into which the strap button is screwed has let loose at some point.

It almost looks like the original 'doubler' was replaced at some point with the wood block shown in the photo. I say this because the block doesn't look like it would fit into the glue joint.

Do both guitars have this type of wood block or is one different from the other?

2) The inside of the bowl looks like it was sprayed with black paint because of the masking effect where the paint was not able to hit that allows the bare fiberglass to show through.

This is the other reason why I think this wood block was not original. It's bare wood, but missing paint below it shows the original 'doubler' was there when the inside of the bowl was sprayed.

3) What is that? It almost looks like some sort of sponge foam.

Pretty funny stuff about the vintage milkshake stain. If you're feeling really brave, you could taste it to see for sure...

Thanks, Jonmark.

Yep. Your description of the 'thinness' of the bowls sounds like a hand-layup to me.

If you look at PP.13 of the 2007 Ovation Factory Tour on the Ovation Tribute site, you can see several hand-laid bowls in their 'natural' state. (See: PP.13)

The 'blueish' color looks to me like the primer. Where the primer has been sanded through, the natural fiberglass resin shows through as the 'greenish' color. The 'whiteish' color around the neck slot in the top of the body is where the skin of the molded fiberglass resin as been sanded through and is showing the interior of the fiberglass resin/cloth, itself.

I have an `82 1655, which was the first year of the SMC bowls and it's noticably thicker and less flexible than my 2078. The later Lyrachord GS bowls also seem vibrate more than the early SMC bowl. (belly rumble)

In fact, I've found that the back-door adds structural integrity. Whenever I remove it, the bowl is more flexible than when it's tightly clamped into place.

Hey Dan...

I am not able to feel any cloth texture in the bowls...it is smooth to the touch.

Very nice observation...I hadnt noticed that...you can see the weave, when the light hits it right...especially around the corners.

P1

In regards to Pic5

1) I sent this guitar to the MS to have the bowl and soundboard polished. Kim commented to me it was the cleanest 67 that he could remember seeing. The tailpin was missing...so I imagine this is the MS repair.

2) Certainly makes sense

3) I am guessing that it is missing a brace, as you can see from the comparison pic from 495. When I feel it, it isn't foam, it feels like a very thin piece of wood. The top, below the bridge doesnt show any bellying and there are no lacquer cracks. hmmm...puzzled on what to do about this. The strip in 1911 is certainly wider than the brace in 485...and there are no glue globs.

485  1911  Closeup

"you could taste it to see for sure"

Sounds like one of Cheech and Chongs first routines...

Dan,

On the early Balladeers, there was a horizontal strip of fiberglass tape on the underside of the top.  Somewhere there's a drawing that shows it, but I can seem to locate it tonight.  Here's a photo from an an early Balladeer.  I'm not sure what that strip is the picture you posted.

Nick

(IMAG0237_sm.jpg)


Hi Jay,

Print through is pretty common in the fiberglass industry and it's more of a visual problem than a structural one. It's usually caused by the resin shrinking or too much vacuum being applied to parts being vacuum bagged. It's also more of a problem with darker colors than lighter ones. It could be that during the course of its lifetime, this guitar sat in a stand for a while in a sunny spot.

There are ways to minimize it, such as laying down a layer of cloth with a finer weave on the exterior layer, which is what I do. Personally, I wouldn't worry about it.

1) Aha! That makes perfect sense.

3) I looked at the original patent documents and it looks like this may just be the fiberglass reinforcement.

It's interesting that 485 has a wood brace but 1911 does not. It's also interesting that 485 looks like it has a lot of excess resin on the back of the sound board while 1911 is almost perfectly clean wood in this area.

With instruments this old, it's nearly impossible to determine what kind of life they've had and what's been done to them over the years. It could be that some luthier who was ignorant of the early Ovation construction added the wood brace to 485 somewhere along the line.

Personally, if 1911 plays well and isn't bellying, then I wouldn't do anything. If the MS looked at it and gave it a passing grade, then I would leave well enough alone.

Thanks again for the pics.

Dan

Hi Nick,

Thanks for the info. I did a search online and found the original patent documents/drawings that describe the reinforcement strip you mention. (See below)

Dan

Another example of an early Ovation came up for sale on eBay. (Thanks, Jay!)

Like G 552, the serial number/date (A-913) tells me this is the second generation bowl hand-laid inside a female mold. (1968-1970)

The weave showing inside confirms it. It's interesting to see the differences in the lay-up technique between this example and G 552. Lay-ups inside female molds requires a more careful technique than over male molds to achieve consistent part thickness. This is probably part of the reason why these were considered inferior to the earlier generation of bowls hand-laid and vacuum-bagged over male molds.

1111 A-913 #1
1111 A-913 #2
1111 A-913 #3

TJR recently sent me some pics I thought were very interesting, so I thought I'd share.

The first two pics show a 1st Generation hand-laid bowl.

As someone who's done this type of molding there were several details that jumped out at me.

If you read 'The Book', the process for making laying up these bowls is described on PP. 26.

While the 2x2 twill weave cloth can easily form over this kind of shape, the clear plastic sheet is used for for molding over a compound curved back cannot fully conform to the shape. It folds over and wrinkles when the vacuum is applied. This produces the characteristic ridges and valleys we can see in the photos along the sides and radius to the back. Once the resin has cured, these need to be sanded smooth, which we can see in this bowl.

TJR relates that this bowl is noticably smaller than the modern bowl he sent me and would fit inside the modern bowl with room to spare.

In this next photo we see a laminated wooden plug.

This is from a very early development period. We can tell this because of the slab sides and lack of radius between the back and the sides along the upper and lower bouts. It also has more of a dreadnaught shape rather than the pinched-waist OM-style used by virtually all Ovation guitars.

I suspect this was from a mid-step engineering test between the flat-backed fiberglass design and the fully-radiused design seen in the pics above.

This type of construction is fairly normal for mold-making. Being solid wood, I'll bet it weighs a ton.

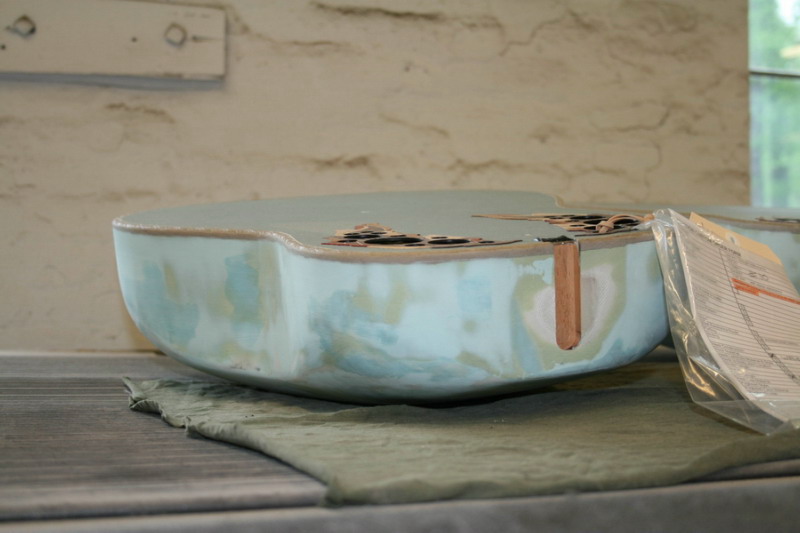

Here's a couple of pics of the newest generation cloth bowl. This is the same bowl I used to mold the patch on my 1619-4 Repair thread in the BFLG forum.

Here's a couple more pics of the 1st gen cloth bowl.

Here's a pic of the 1st gen bowl inside the newest gen cloth bowl. As you can see, they've gotten larger over time. This is not caused by shrinkage. Usually when epoxy resin shrinks, it just makes the parts thinner, not smaller.

Here's a pic of the 1st gen wooden mold and and a cloth bowl. What you're seeing here is worth noting.

First, the mold is a lot deeper than the bowl. This is because when when vacuum bag molding a part, you have to allow space for the plastic bag to fold over at the base of the mold. This is the same principle used for vacuum molding plastic parts. You need a little bit over overhang which must be trimmed from the final part.

In contrast, a female mold can be made to net depth because the part can be trimmed to the top edge of the mold.

The bowl has had the neck and heel blocks glued into place and the upper part where the kerfing would be glued has been masked, then the whole interior of the bowl has been sprayed black.

The sharp angle of the neck block shows us this is a very early bowl, probably 1965-1966.

In contrast, here is a pic of the two-part mold used to produce the SMC bowls. Welcome to the industrial age!

As I noted above, the SMC bowls used fiberglass prepreg molded over steel molds heated to 300 degrees. Finished parts came out of the mold in minutes, instead of hours.

Speaking of tops, here's some pics of the 1st gen top. These used very simple X-bracing. Note the lack of finger braces and tone bars commonly seen on X-braced guitars.

Here's another 1st gen top. This one is a 3-piece spruce top, circa 1966.

How do we know it's from 1966? Why, because it's been dated!

Although the X braces and popcicle braces have been scalloped, and the center joint reinforced (with birch plywood, no less!) the glue joints between the X braces and the soundhole strips are pretty sloppy.

Also seen is the fiberglass reinforcement strip across the lower bout mentioned in the patent documents above.

Here's what's left of the A braces from my 1619.

The 1st gen bowls were vacuum bagged. While this produces very high quality parts, it's pretty labor intensive.

Here's a schematic drawing showing the laters used when vacuum bag molding.

And, here's a part being molded. Even though this is a slightly concave part, the process is the same for a male part like the 1st gen bowls. Notice the folds in the plastic vacuum bag. These can also be seen in the pics of the 1st gen bowl I posted and this is how they get there.

The later hand-laid bowls, like the one seen in my 1619-4 thread, are made in female molds.

But, instead of squeegeeing the excess resin by hand, and then letting them cure naturally, they put them into an autoclave which applies vacuum, pressure and heat. Here's a schematic drawing of how the bowls laid up. This drawing shows prepreg, but the bowl I've got was done with plain old resin and 2x2 twill cloth. Generally speaking, prepreg uses fiberglass roving, not woven cloth.

And, here's a carbon fiber bowl being molded in a female mold. This part is placed into the autoclave. The pressure squeezes out the excess resin and the heat makes the part cure faster. Making parts using this method is less labor intensive and the finished parts can be produced more quickly. Not as quick as SMC prepreg, but a lot quicker than letting the resin cure naturally. So, you get high quality parts more quickly.

Any discussion about vacuum molding composites wouldn't be complete without also mentioning resin infusion. Instead of laying up cloth and wetting it out with resin, then vacuum bagging it, dry cloth is laid up, vacuum is applied and the resin is sucked through the cloth. Resin infusion is slightly more wasteful of resin, but produces the highest quality part with the highest cloth to resin ratio.

To my knowledge, resin infusion is not used with autoclave molding, nor did Ovation use it in their molding process.

Dan...this is almost as good as 24.

Ok...but back to scholar's question (i think)...Do you think that they made the 40th RI shinys the old fashion way?

Dan...I just enjoy the dialog, regardless of the level of commitment.

Maybe someone here can pop a few pictures of their 40th bowl, inside and out for your consideration.

I bought one with quite a bit of damage to the bowl...Scratches from a belt and what looked like to be a chemical melt from epoxy or something. I sent it to the MS and bowl came back looking brand new. As badly melted as it was, I thought it would have to be replaced. Nope and for some ridiciously small fee. There is no doubt in my mind, we are going to miss those guys tremendously.

Oh boy now this goes into the territory like at AGF where they like to discuss the effects of various body woods on tone ...

So I am curious, as the late 70s seemed to have been a transitional time from handlaid to composite, what kind of bowls were used on the production Adamas 1687s of that time? And was that reproduced for the 30th Anniversary RIs?

Generally speaking I would expect stiffer epoxy to make better musical instruments because it would transmit vibration better than softer epoxies which would tend to absorb (read: dampen) the vibrations. As I mentioned earlier, excess resin only adds weight, not strength. Excess epoxy would also dampen vibrations. Vacuum-bagged parts are superior because it squeezes out the excess resin. 'The Book' states, the 1st gen bowls were considered to be better than the 2nd gen bowls. This can be directly attributed to the the difference in how the two generation of bowls were manufactured.

Similarly, the finish, any finish, applied, dampens vibrations. The best is no finish. Next, is french polish, followed by varnish, then nitro, polyurethane, and lastly polyester.

WRT the contour bowls, my brother stayed with me last year and we had a chance to play together, he on my 2078TX-5 and me on my Book Elite. One thing that struck me while he was playing was how loud the 2078 was. I kept thinking to myself, 'Dang! Take it easy. You're drowning me out' It wasn't until later that I realized that it wasn't his playing, but the guitar itself that was loud.

This thread hasn't been active for a while, but I suspect it gets read quite a bit (and it's still very informative.)

What brought me back to it was;

I was doing a little work on my 1979 Pacemaker (1115) and remembered that, back when I first got it (maybe 8 years ago?) and peeked inside, I noticed some odd-looking tan cloth/material (or something) in the "tailstock" area. (It appears to be a cloth bowl, weave patterns are visible inside, and that would fit with Dan's timeline.) I never figured out what it was, and I love the guitar, so I basically forgot about it until I looked inside it today with a flashlight. Out of curiosity, I checked the OFC and reread this entire thread. Only when I looked at those photos Dan originally linked in his first post did I realize that the inside of my Pacemaker looked EXACTLY like what he'd seen in that old late-60's Balladeer bowl in his photos (here's a reduced copy of Dans photo.):

Apparently, that "rough" area wasn't necessarily unique to those very early bowls afterall.

I don't think it's an aftermarket repair, although it's possible that someone reached in from the soundhole to patch a hole or something. The outside of the bowl looks nearly perfect, except for one barely-detectable indentation in that general area which looks like it was hit from the outside by something. It could have been a factory repair, since they certainly would have been able to repaint the entire bowl to make it unnoticable from the outside, but has anyone ever heard of the factory patching bowls from the inside (with the top still attached) to repair them like that? (especially sometime after 1979?)

A simpler explanation might be that it was (sometimes?) deemed unnecessary to sand and paint that part of the inside of the bowl because (almost) no one would ever see it anyway once the top was attached? (Or, maybe, if a bowl didn't pass inspecton, it was patched like that and then put back into the production line?)

Interesting mystery (great guitar, regardless.)

Here's a bunch of pics of the inside of the various guitars I've worked on. If the inside of your bowl looks like these, then here's my explanation for the rough area.

It's simply a reinforcement for the strap mount. The fiberglass bowl is pretty thin -- two layers of cloth. This area of the bowl would distort with the weight of the player's arm pushing down on the lower bout while playing with a strap. To prevent the strap button (molly) from tearing out of the bowl, the MS added these extra layer(s) of cloth.

The rough surface texture is because they wet the area of the bowl where the cloth was going to go with epoxy, then laid on the cloth and wet it out. To get a smooth surface would have required a top coat of epoxy.

Since no one was going to be 'touching' this area, or even seeing it, there was no reason to 'waste' the extra epoxy.

The exception is the first bowl. This is Paul's 1117, which got a hand-laid bowl at its most recent factory visit. When the MS added the extra cloth, they top-coated it with epoxy.

If it's 'tan' that's just years and years of accumulated dust collecting in the nooks and crannies of the rough fiberglass cloth. If you were to take a stiff brush to this area, you could return it to its original color -- black. My 1111 looked the same way (see below) until I brushed out all the dirt.

Paul's 1117-4

1111-4

1113-4

1117-4

1617-4

1619-4

The shiny bowl is as light as any bowl, imo...and produces a response equal or better than any other bowl Ovation came out with, acoustically, imo.  As many times as this has been kicked around, I think it is clear that it is a sum of the parts, instead of a single part.

I just finished reading an interesting article that discusses using computer modeling to isolate the manner of sound generation in classical acoustic guitars. Among other things, it mainly talks about the relationship between the top, the air inside the guitar and the back/sides.

See: Mathematical Modelling and Acoustical Analysis of Classical Guitars and Their Soundboards

As expected, there is a direct relationship between the movement of the top and the back due to the coupling of the two via the air piston contained inside the body. And, as expected, the top moves a lot more than the back because the air is somewhat compressible and the top is made to be more flexible than the back.

WRT your observations, it's possible that the earlier thin cloth bowls created a response that is slightly out of phase with the top and cancels the propogation of sound waves throughout the body and out the sound hole. The stiffer bowl of later guitars vibrate less. Because their movement is more limited due to their thicker material, the sound waves are not canceled.

Imagine, sitting in a bathtub full of water. If you slide forward and backward and wave can be generated which sweeps back and forth through the length of the tub. The amplitude of the wave can be increased by moving in time with the wave, but the timing (frequency) of how long it takes for the wave to reach from one end of the tub to the other is controlled mainly by the length of the tub. A longer tub would produce a lower frequency and a shorter one a higher frequency. Now, if you move out of phase with the wave, you can cause it to stop altogether.

This is similar in concept to the thinner back which is more flexible and bounces back more quickly, which could accelerate the sound wave so it leaves the back at a higher rate than it arrived. So, instead of the top and back moving up and down together, they are now acting more like a bellows where one is moving up while the other is moving down.

Also, as expected, thinner, more flexible material favors lower frequency sound waves (bass) and thicker, stiffer material favors higher frequencies. (treble) This becomes even more complicated when you have hand-laid, woven cloth fiberglass bowls whose thickness (and vibratory response) is controlled by how much resin the lay-up applied to that bowl. So, you could have one bowl that has more or less bass and more or less treble, depending on how it was laid-up. One thing that the SMC bowls did introduce was consistency of thickness and hence, response.

As Jay points out, the end result is a sum of the parts. It's difficult to compare one guitar to another mainly because of the wood involved. Even when two guitars are built identically, the wood used in its construction has a lot to do with how it will sound.

One of the things I found interesting about the documentation of the prototype Adamas guitars on the Ovation Tribute site is that by using composite tops, the factory reduced the number of variables required to produce consistently good-sounding guitars when compared to all-wood guitars.

But even so, the factory still struggled to produce guitars with a consistent frequency response that their ears said sounded good. One would sound really good and the next, not-so-good. They had reduced the number of wood components to just the birch core of the top and the braces, but still have inconsitent results which needed fine-tuning.

The above paper also talks about the relationship of the neck to the body and that even it can affect the final sound of the guitar.

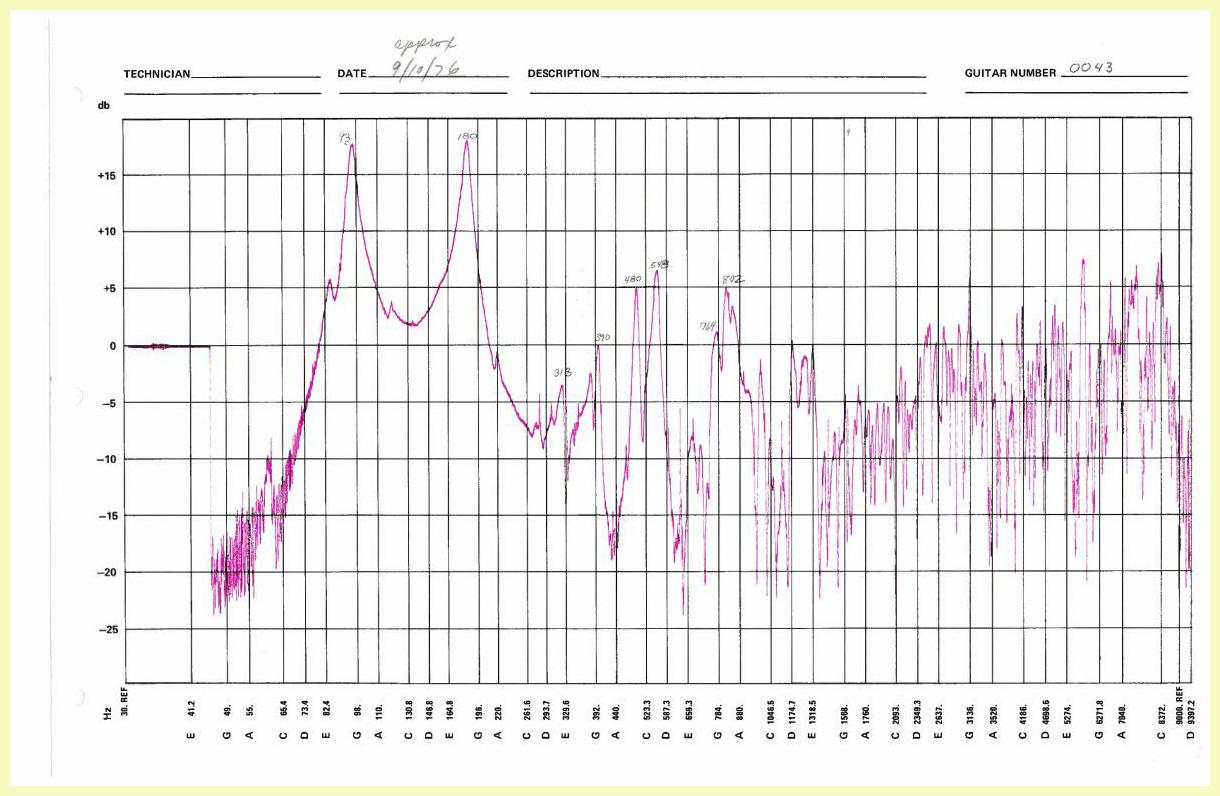

From the plot, it looks like a well-balanced sounding guitar.

For a comparison, here's the plot from what they considered their optimum (prototype 26-3):
